Description:

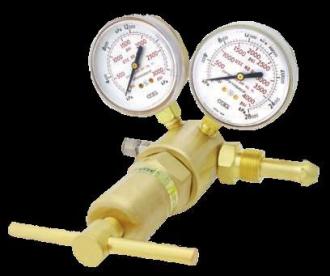

Gentec High Pressure Regulator

Model 591 Series High Pressure Piston Regulators feature a reliable piston design for precise gas control at high
inlet and delivery pressures rating up to 4500 PSIG. This popular high pressure regulator is a high quality regulator and the 591 Series pressure regulator will provide superior performance and safety features.

Gentec High Pressure Regulator Feature
  • Piston-type construction
  • Body and housing cap are machined from class “A” brass
  • Delrin-cap bushing for smooth adjustments
  • Sintered bronze inlet filter
  • 1/4” Stainless steel Compression-Tube Fitting Swagelok Outlet
  • 2-1/2” gauges
  • Weight: 4 lbs
  • Conforms to CGA E-4 standard for gas pressure regulators

High pressure regulator : Application & Uses

  • High Pressure Regulator (50 bar regulator, 70 bar regulator, 100 bar regulator, 200 bar regulator, 300 bar regulator).
  • Ideally suited for pressure vessel testing, gauge testing, hydraulic accumulator.
  • Dead-end testing.
  • Inlet pressure : Max 400 bar (6000 psi)
  • Delivery pressures : 50 bar (750 psi); 100 bar (1500 psi);  200 bar (3000 psi); 300 bar (4500 psi)
  • May be panel mounted.
  • Single Stage gas regulator design.
  • The most common application for this regulator is as high pressure nitrogen regulator.

    High pressure gas regulator : Design/Construction
  • Piston type actuation
  • Machined body and cap
  • 2-1/2" pressure gauges brass
  • Cartridge type seat assembly with PCTFE seat
  • Delrin® cap bushing for smooth adjustments
  • Sintered inlet filter
  • CGA 580/ CGA 680 / BS 341 no 3 (BS 3) / other fittings
  • Maximum Inlet 3000 psig / 5500 psig
  • Delivery Range : 50 bar (50-750 psi); 100 bar (100-1500 psi);  200 bar (200-3000 psi); 300 bar (300-4500 psi)
  • Outlet Fitting: 1/4” Swagelok® type stainless steel or other fittings on request

    High pressure regulator : Construction materials
  • Body.........................Machined Brass
  • Piston.......................Brass
  • Housing Cap.................Machined Brass
  • Inlet Filter.................Bronze
  • Manufacturer part numbers :



    MODEL #GAS SERVICEMAXIMUM INLET PRESSURE (PSI)MAXIMUM DELIVERY PRESSURE (PSI)INLET GAUGEOUTLET GAUGEINLET CONNECTIONOUTLET CONNECTION
    591X-750Oxygen300050-7502-1/2", 4000PSI2-1/2", 1000PSICGA5401/4"-Swaged Lock
    591X-1500Oxygen3000100-15002-1/2", 4000PSI2-1/2", 3000PSICGA5401/4"-Swagelock
    591X-3000Oxygen3000200-30002-1/2", 4000PSI2-1/2", 4000PSICGA5401/4"-Swagelock
    591IN-750Inert Gas
    (Ar,He,N2)
    300050-7502-1/2", 4000PSI2-1/2", 1000PSICGA5801/4"-Swagelock
    591IN-1500 Inert Gas
    (Ar,He,N2)
    3000100-15002-1/2", 4000PSI2-1/2", 2000PSICGA5801/4"-Swagelock
    591IN-3000Inert Gas
    (Ar,He,N2)
    3000200-30002-1/2", 4000PSI2-1/2", 4000PSICGA5801/4"-Swagelock
    591IN-1500-680Inert Gas
    (Ar,He,N2)
    5500100-15002-1/2", 6000PSI2-1/2", 3000PSICGA6801/4"-Swagelock
    591IN-3000-680Inert Gas
    (Ar,He,N2)
    5500200-30002-1/2", 6000PSI2-1/2", 4000PSICGA6801/4"-Swagelock
    591IN-4500-680Inert Gas
    (Ar,He,N2)
    5500300-45002-1/2", 6000PSI2-1/2", 6000PSICGA6801/4"-Swagelock
    591Q-1500 Air3000100-15002-1/2", 4000PSI2-1/2", 2000PSICGA3461/4"-Swagelock
    591Q-3000Air3000200-30002-1/2", 4000PSI2-1/2", 4000PSICGA3461/4"-Swagelock
    591Q-1500-680Air5500100-15002-1/2", 6000PSI2-1/2", 3000PSICGA6801/4"-Swagelock
    591Q-3000-680Air5500200-30002-1/2", 6000PSI2-1/2", 4000PSICGA6801/4"-Swagelock
    591Q-4500-680Air5500300-45002-1/2", 6000PSI2-1/2", 6000PSICGA6801/4"-Swagelock
    591H-750Hydrogen Methane300050-7502-1/2", 4000PSI2-1/2", 1000PSICGA3501/4"-Swagelock
    591H-1500Hydrogen Methane3000100-15002-1/2", 4000PSI2-1/2", 3000PSICGA3501/4"-Swagelock
    591H-3000Hydrogen Methane3000200-30002-1/2", 4000PSI2-1/2", 4000PSICGA3501/4"-Swagelock
    1 psi = 0.00689 MPa = 6.895 kPa = 0.06895 bar = 0.07 kgf / cm2,
    1 SCFH = 0.0283 m3/h = 0.472 LPM

    Other manufacturer's cross reference :

    Victor SR4F;Victor SR4G; Victor SR4J;Victor SR4K;SR 4P pressure regulator.

    Harris 8700-1500; Harris 8700-2500; Harris 8700-3000; Harris 8700-4500 pressure regulators.

    Concoa 492 series pressure regulator.

    This gas regulator has proven to be a popular choice for high pressure gas regulation device.

    Some of popular application for this gas regulator :

    1) Nitrogen filling for fire extinguisher

    2) Pressure leak test

    3) Nitrogen gas filling for test kit or test chamber.

    4) Aircraft charging

    5) Bomb calorimeter oxygen gas supply
